Compact Downtube Battery - Hailong G56 Case, 18650 Cells

Compact Downtube Battery Pack

Need to test fit? We've got a cutout available for you at the link below:
Cutout Link

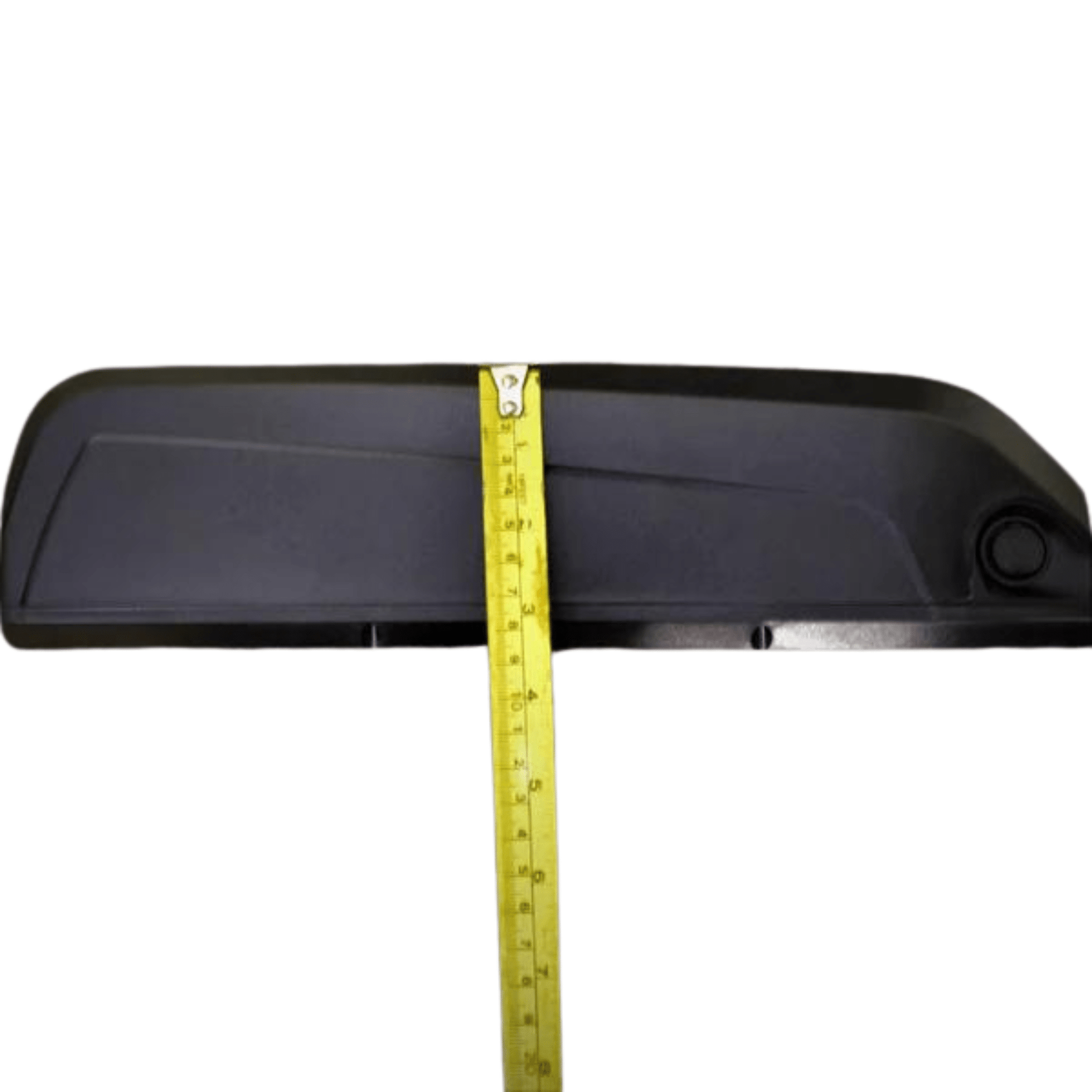

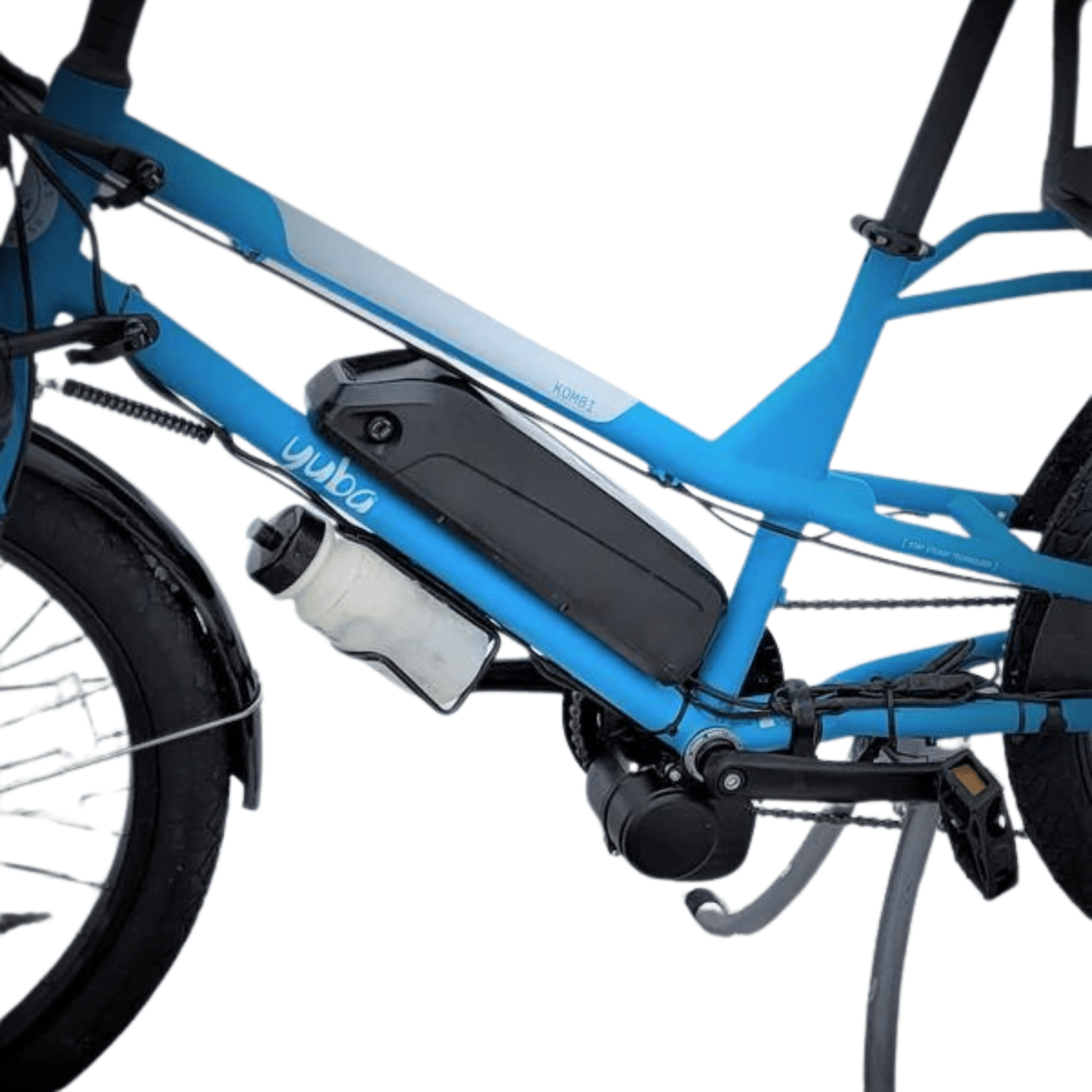

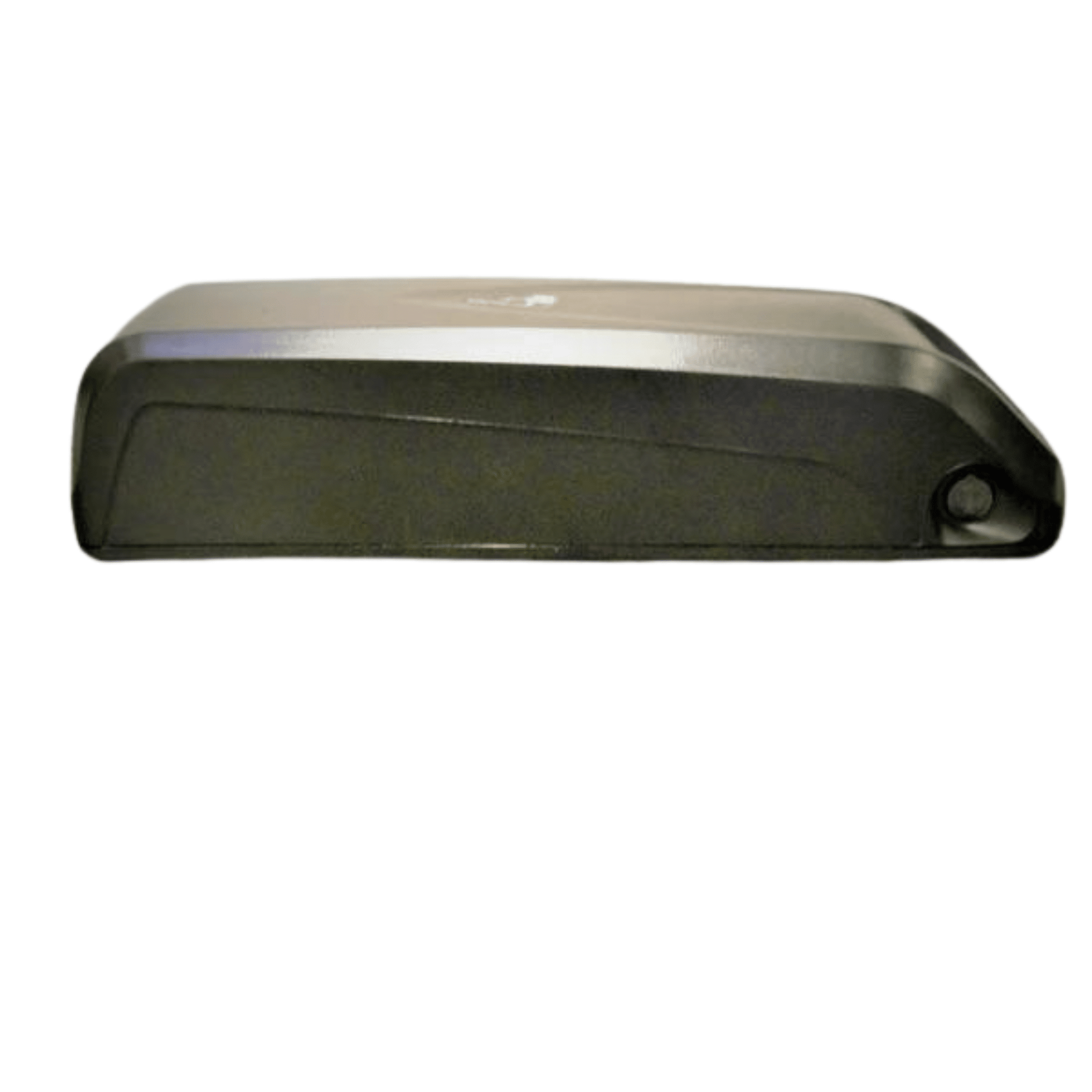

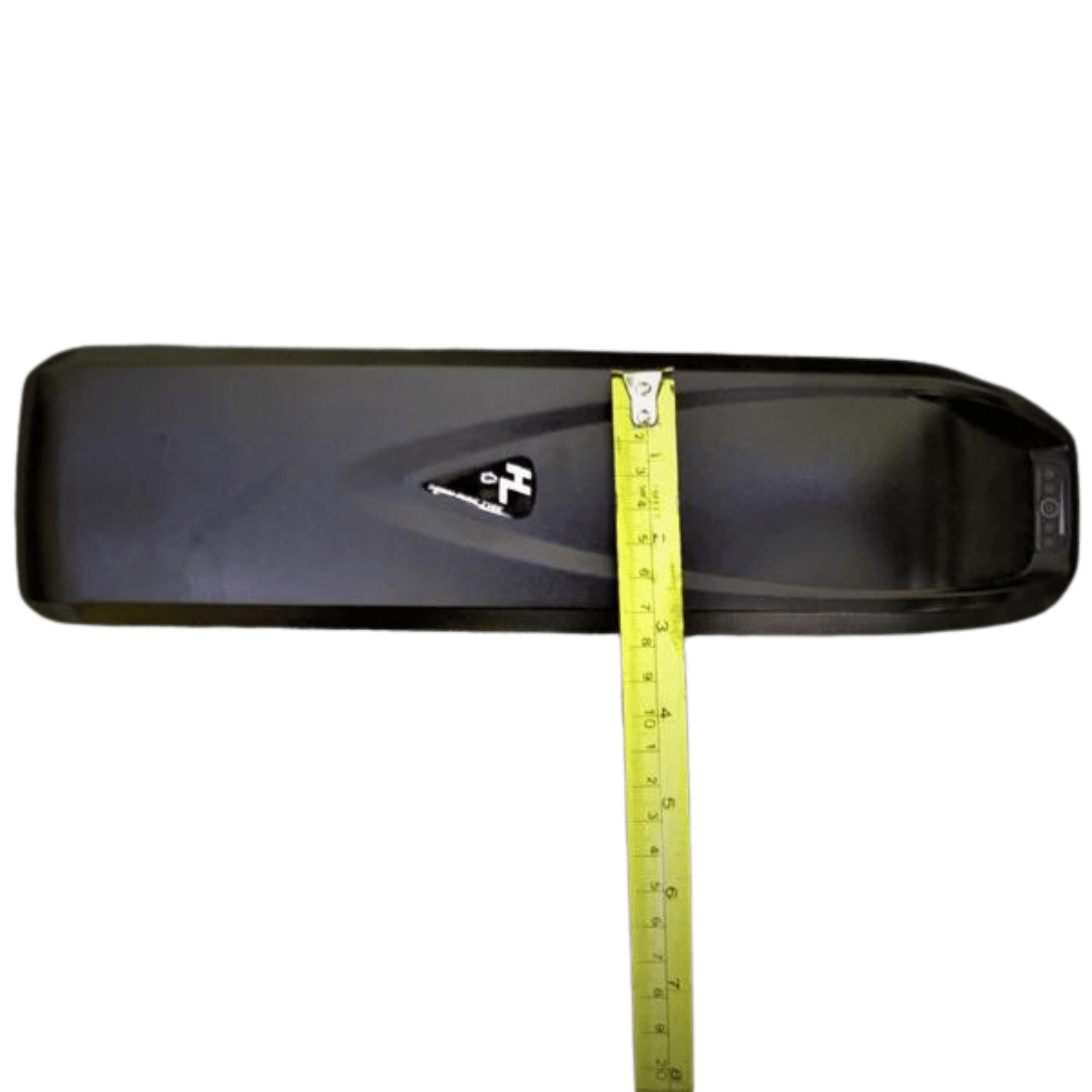

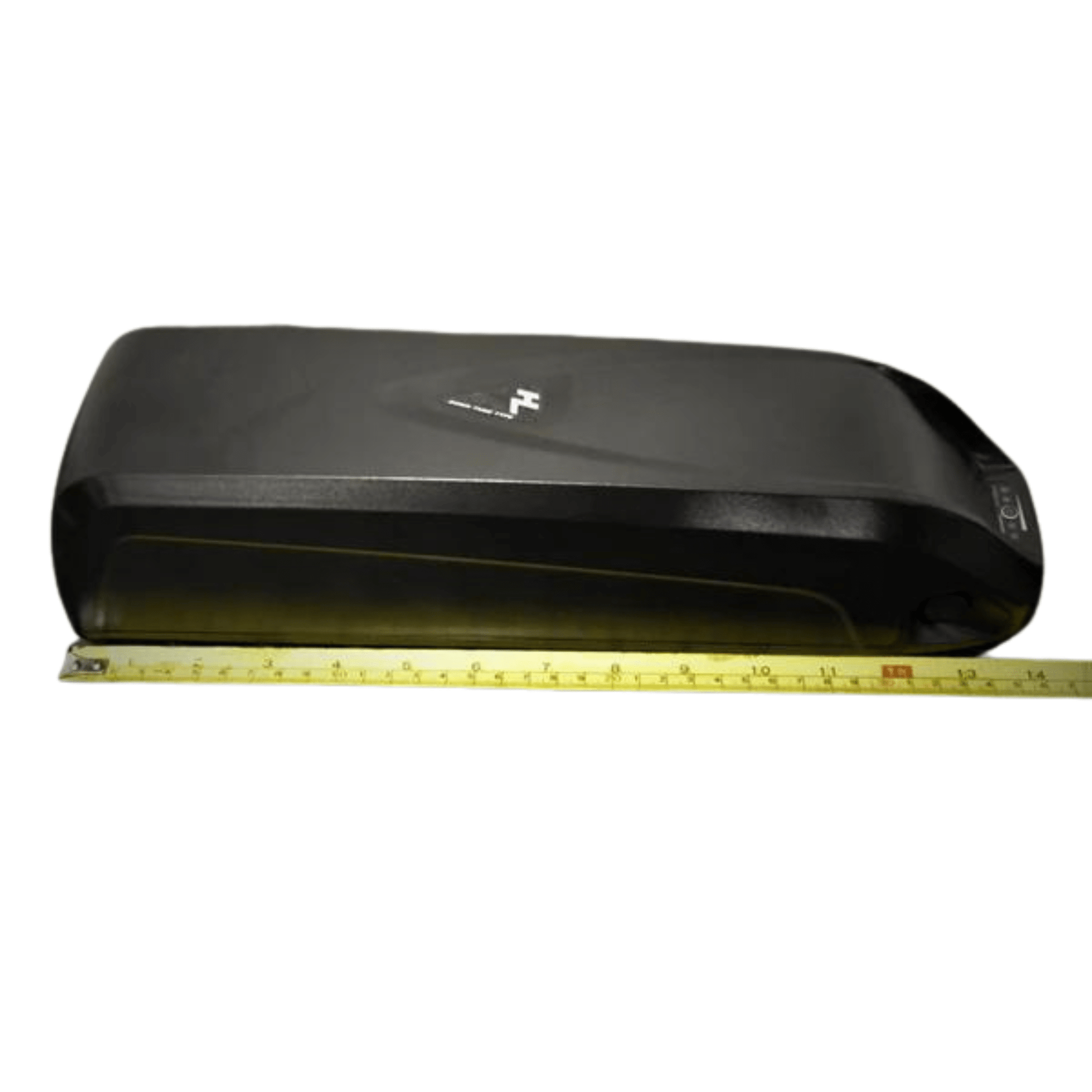

Perfect for narrow frames! Take a look at the dimensions in the images provided.

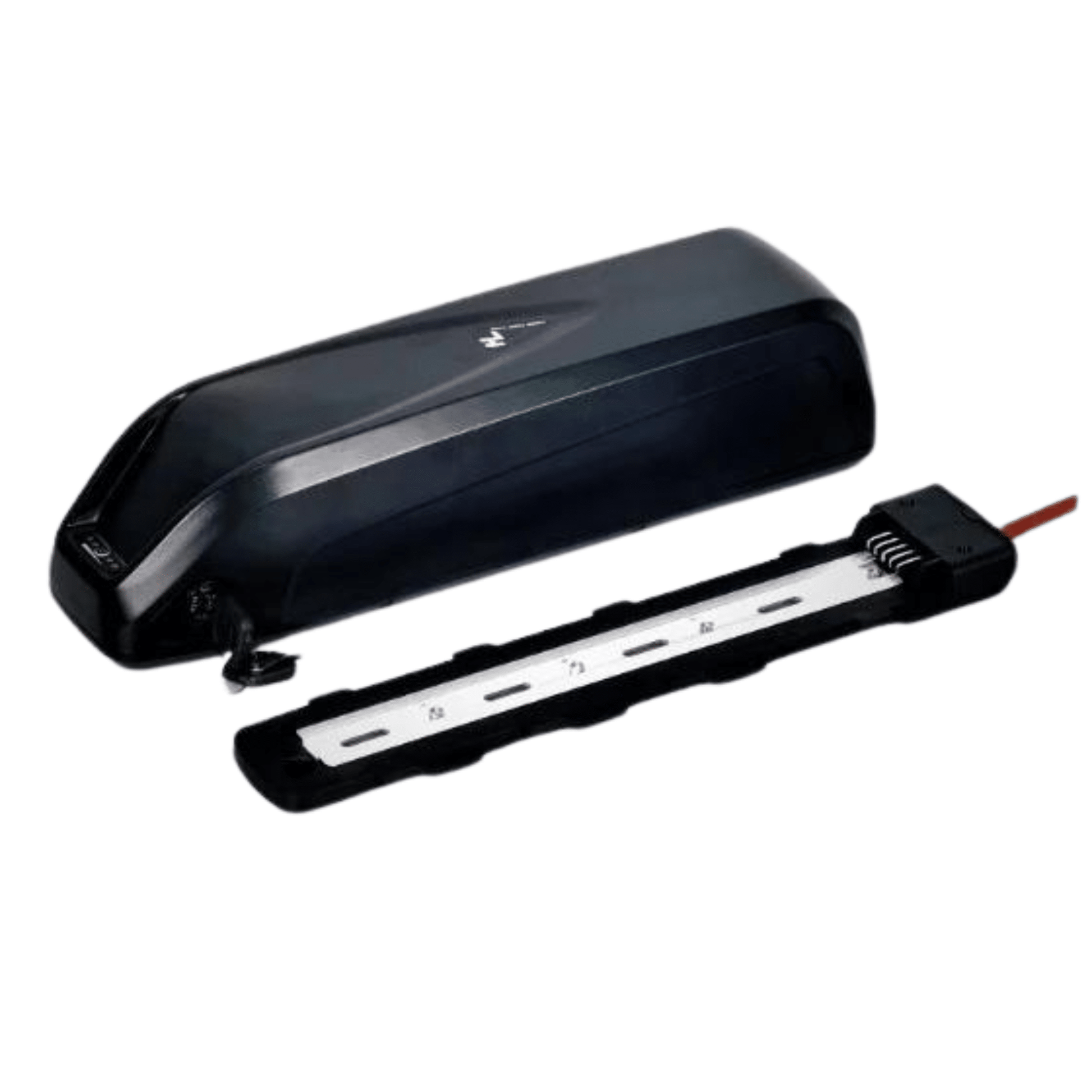

This pack utilizes the new Hailong G56 case, featuring four mounting locations on the base rail, a significant improvement over the previous design with only two.

Built to last, it boasts a robust design with a keyed lock for swift removal, a battery indicator, and a standard charge port.

Our packs are assembled using Grade A Samsung 18650 Cells (either Samsung 33G or Samsung 35E, which offer the highest available capacity for Lithium-Ion Cells).

Battery Specifications:

Cells: Samsung 33G or 35E
BMS: Yes, DALY 20A continuous, 50A cutoff with balance
Charger: Yes, 3A (48V) and 4A (36V)
Configuration: 10S4P, 10S5P (36V), 13S3P, 13S4P (48V), 14S3P, 14S4P (52V)

Assembly Method: Pure Nickel Spotweld

Note: Please email us with the required discharge cable length in inches.
