Downtube Removable Battery - Reention DP6 with 18650 Cells

Removable Battery Pack for Downtube Installation

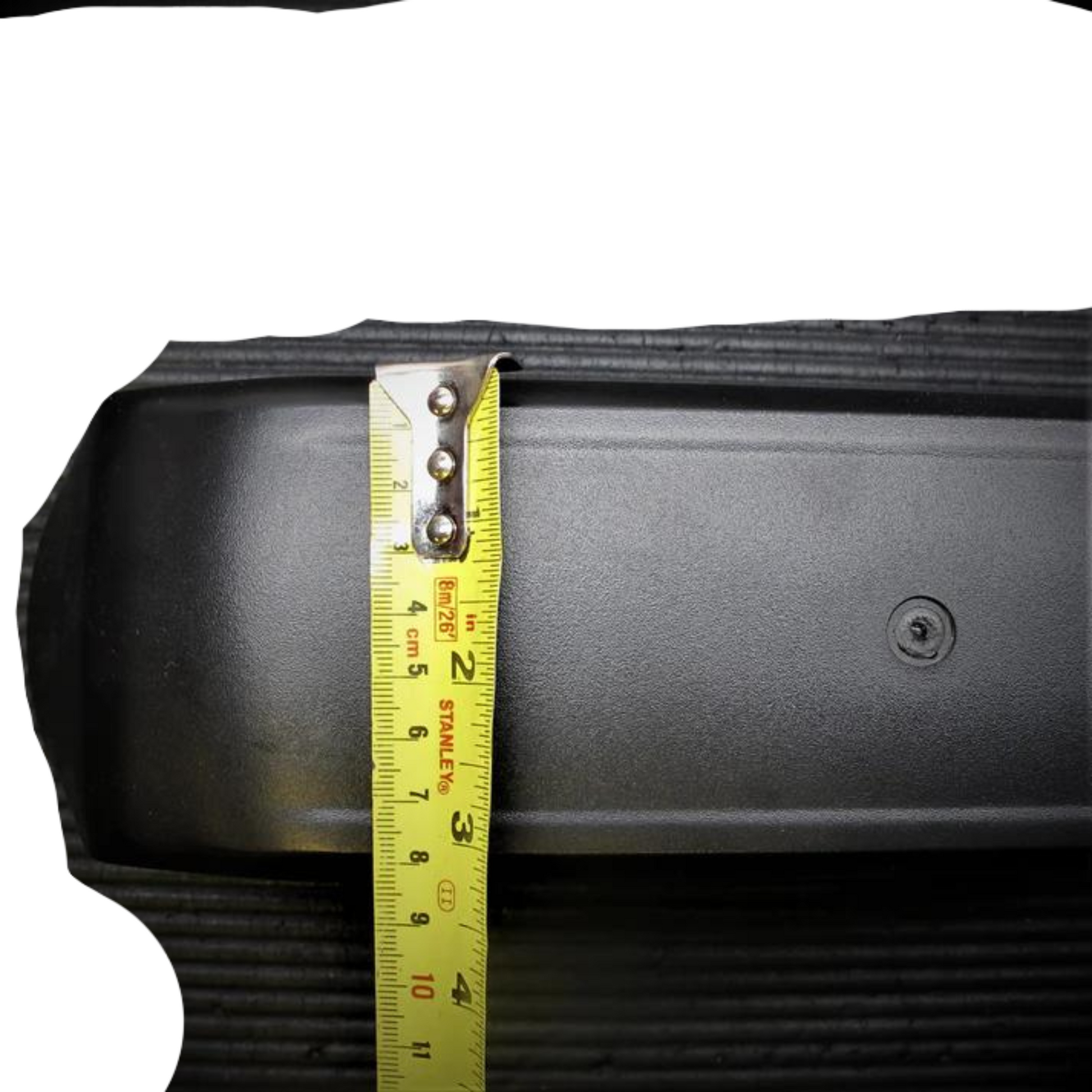

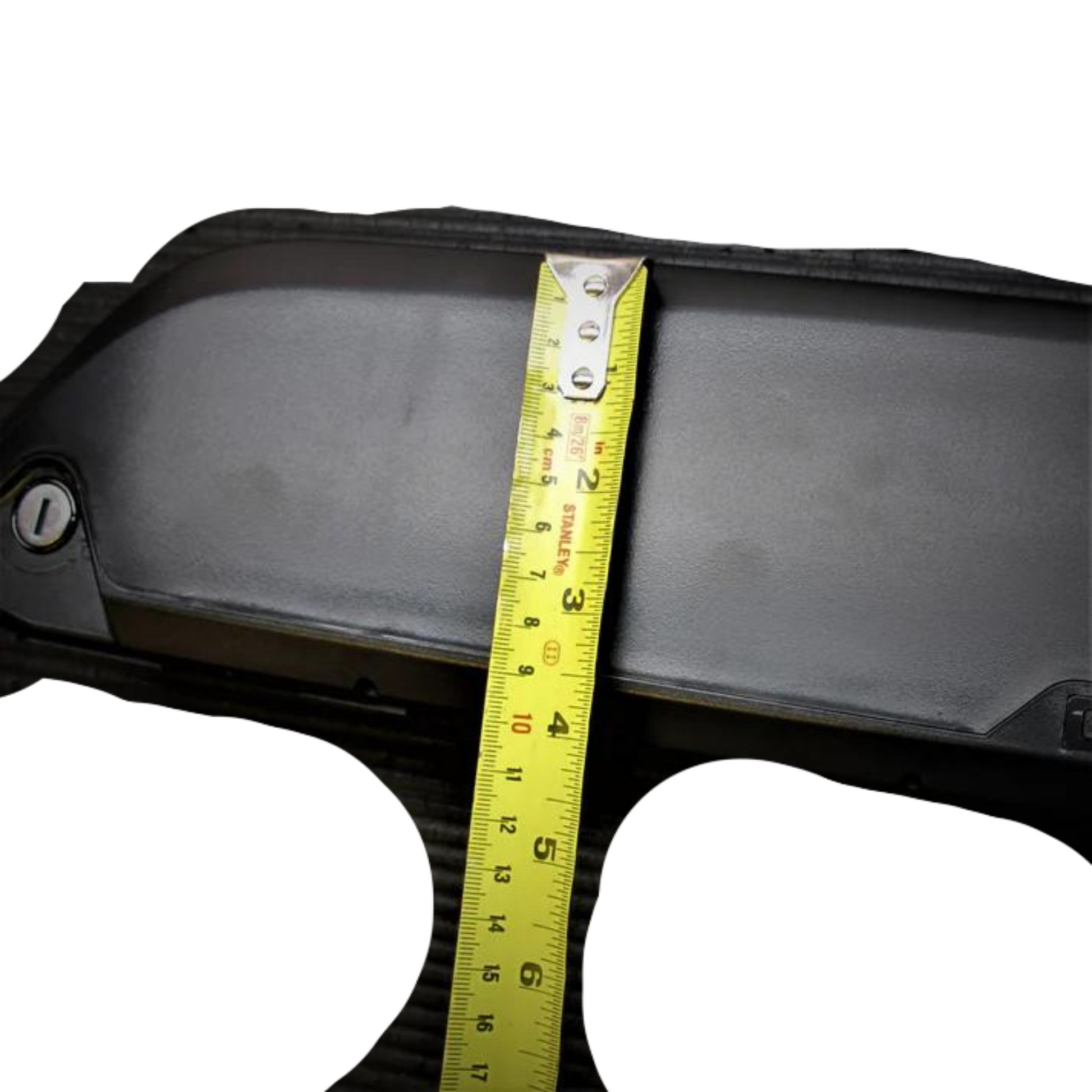

Fitment Cutout Available (please verify fitment): Link to Cutout (Ensure "Actual Size" is selected in PDF Settings when printing)

Our packs are assembled using Samsung Cells:

• 30Q cells are high-discharge
• 33G cells fall within the mid-range
• 35E cells offer high capacity

These packs deliver a maximum output of approximately 2000W, recommended for applications ranging from 750W to 1500W.

All battery assemblies are conducted in-house, allowing for customization of:

1. Connector type
2. Cable length

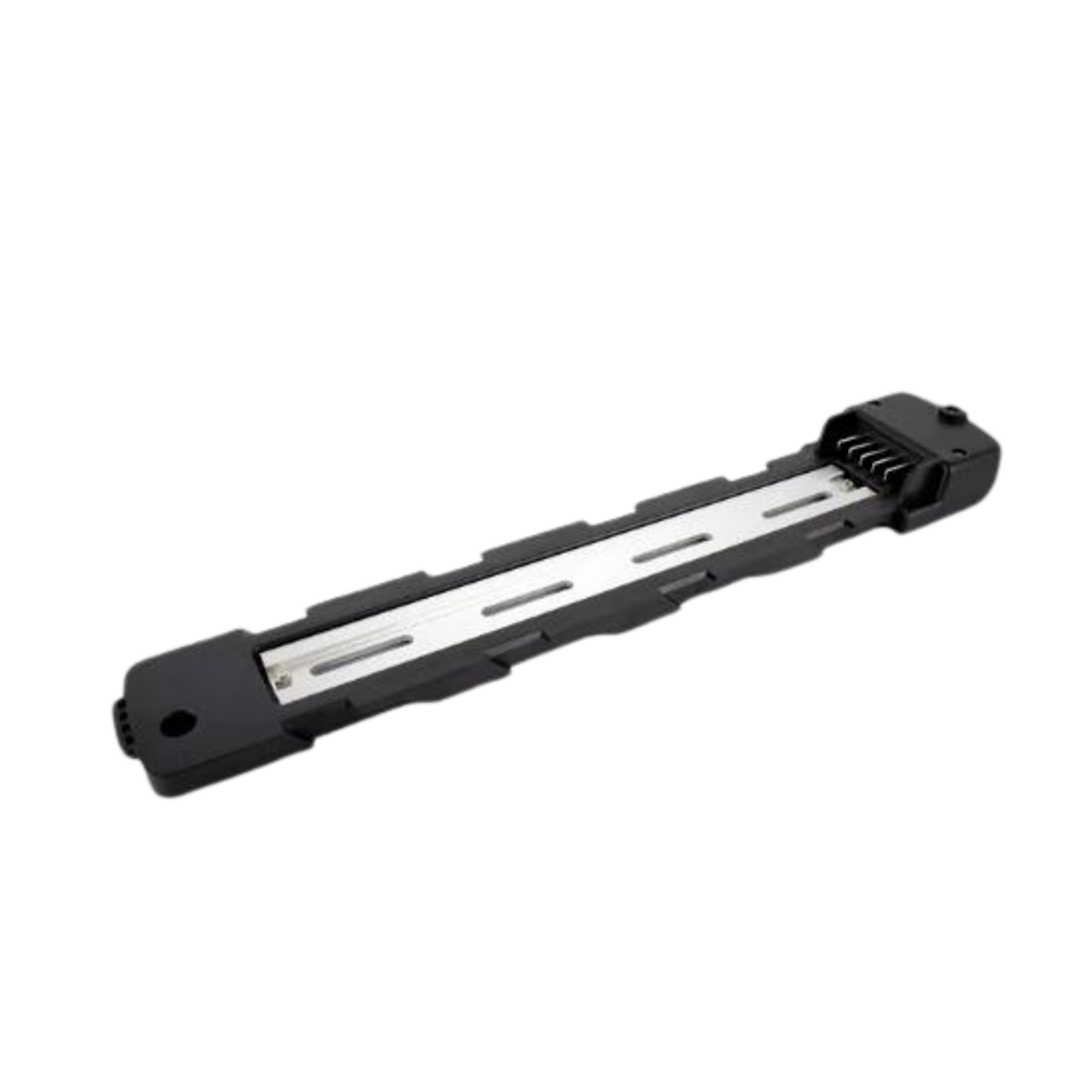

A base is provided with a 5-pin connector (see photo), identical to the base utilized in larger DP-9 and DP-21700-7 cases.

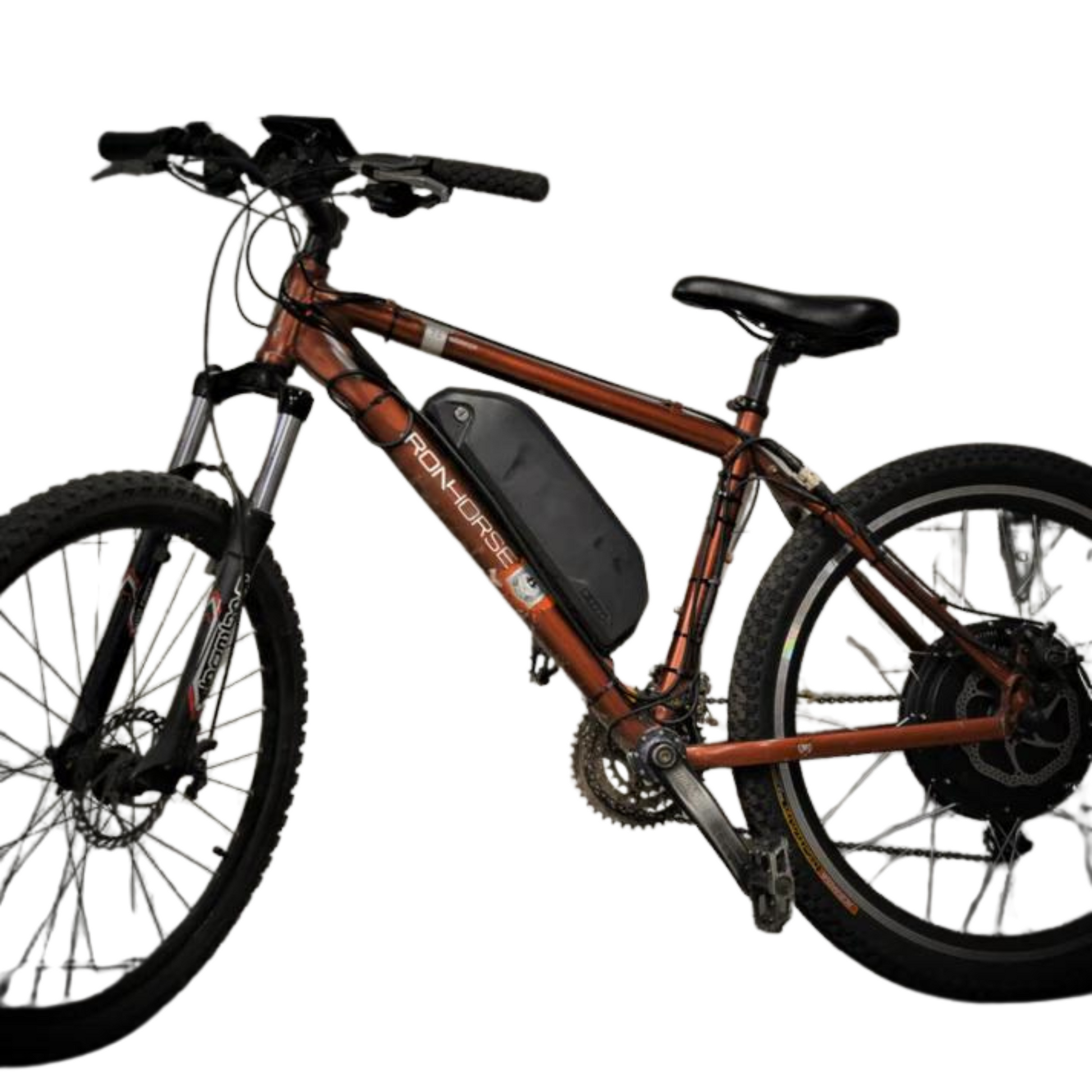

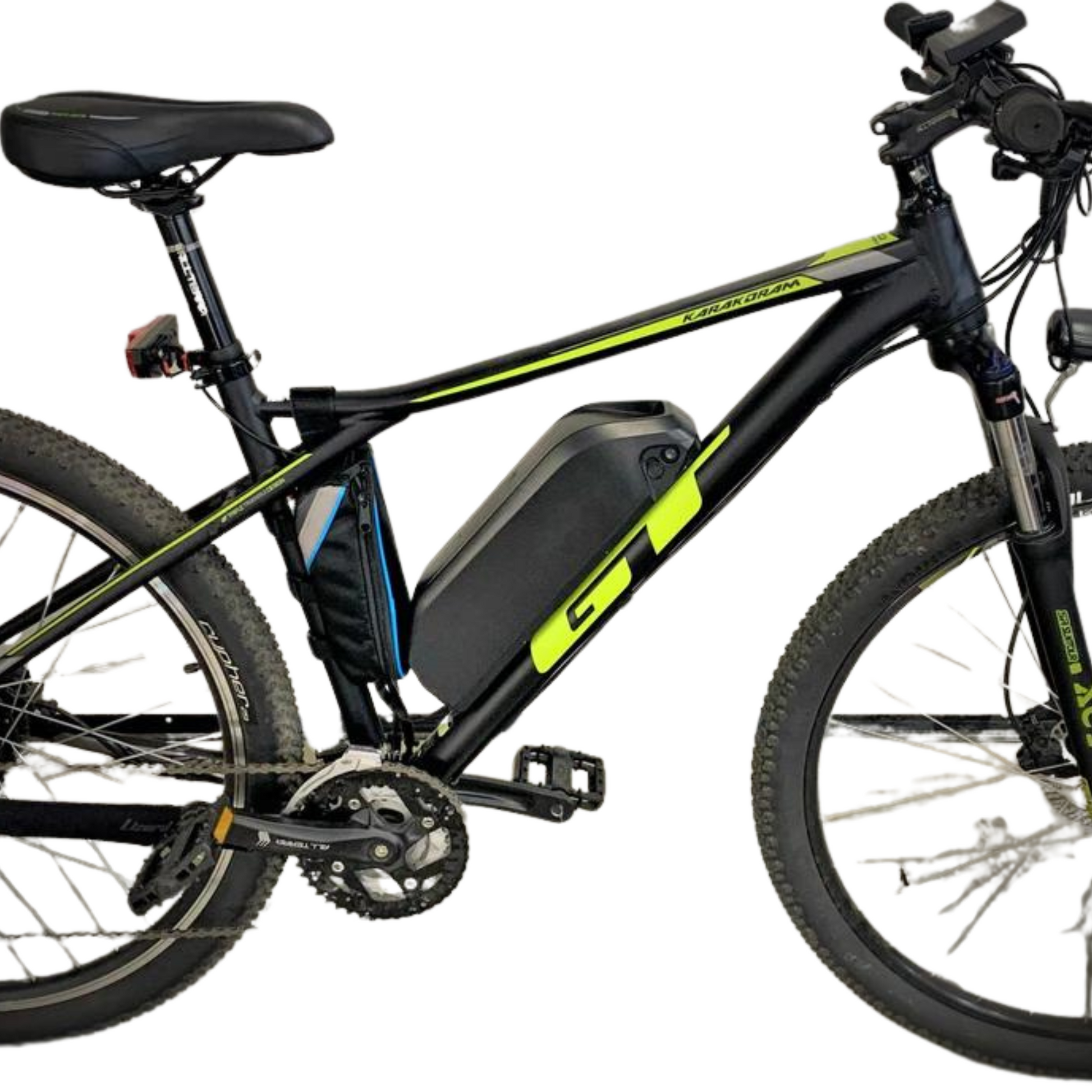

These battery packs can be affixed to your frame's existing water bottle holes.

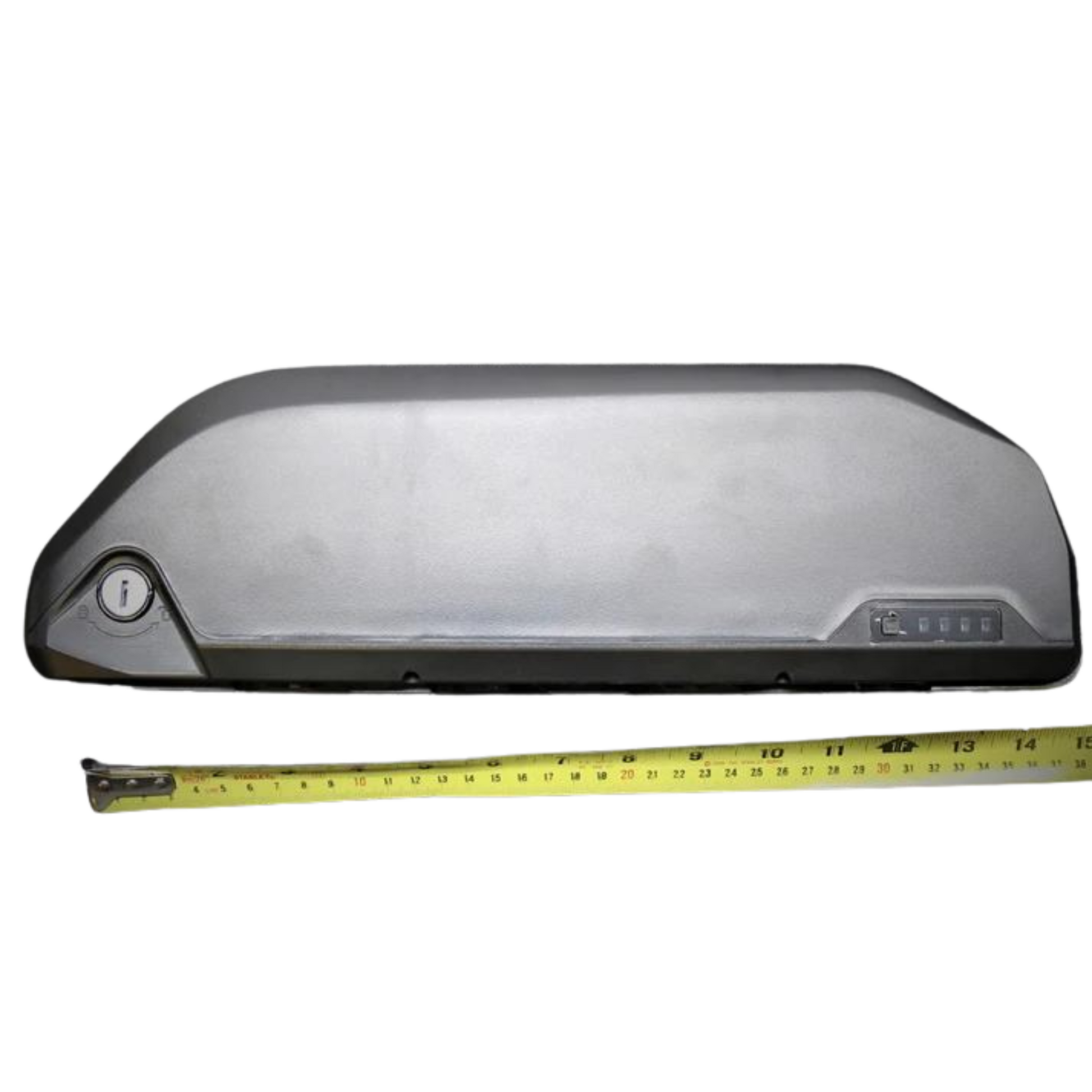

The Reention DP6 Battery case closely resembles Hailong battery cases but boasts greater durability and offers four mounting points on the bottom, as opposed to the commonly found two.

Featuring a quick-release system with a locking key, allowing for swift detachment of the battery for security, charging, etc.

Additionally, for bikes with round tubes, inquire about our 3D Printed adapter plate, which wraps around the tube, providing a flat surface for secure battery placement at no extra cost with our battery packs.

Each battery includes a BMS rated for 40A, a 3-Amp charger equipped with a built-in fan, and two mounting bolts for insertion into your existing water bottle holders.
