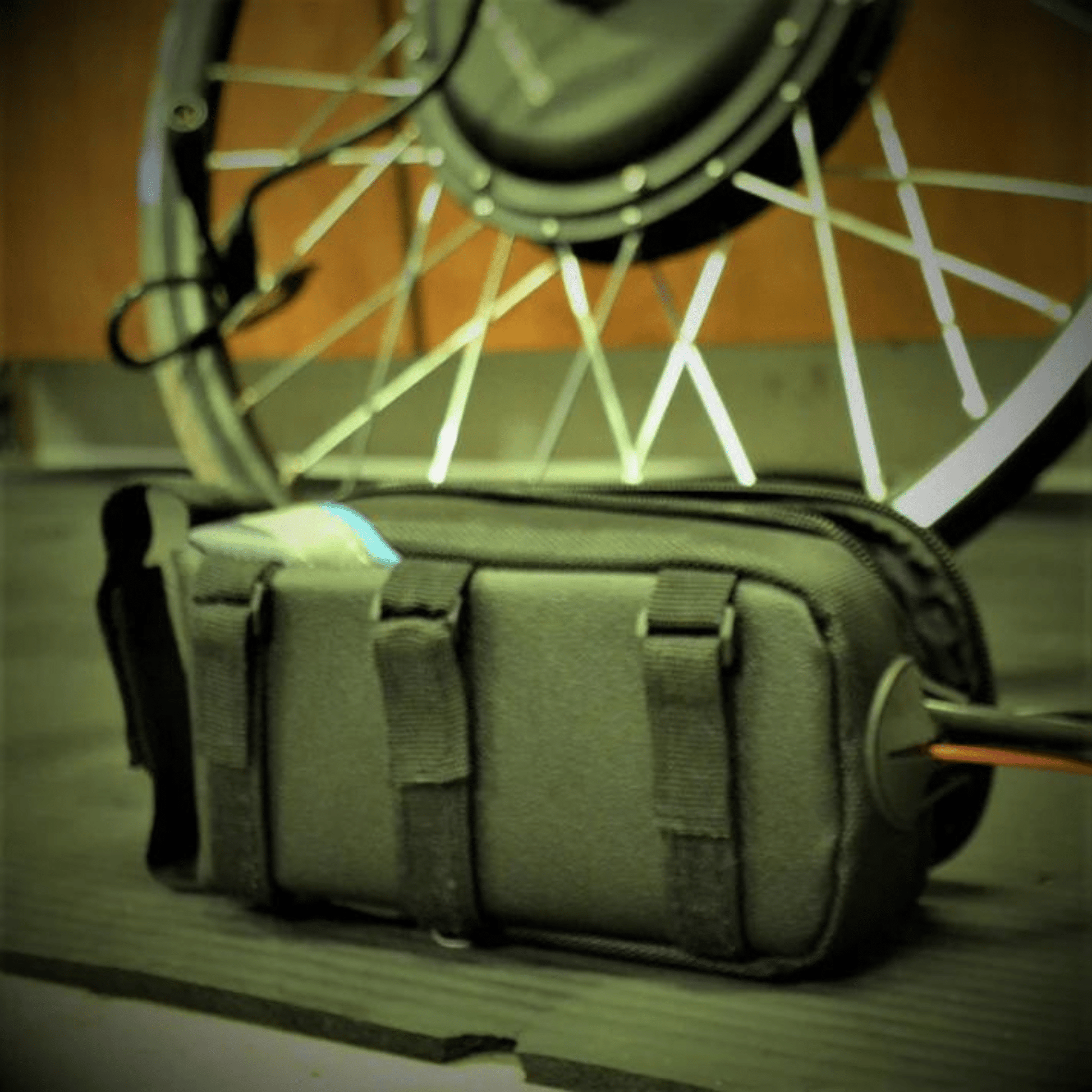

Frame Mounted Battery Pack 36V 48V 52V

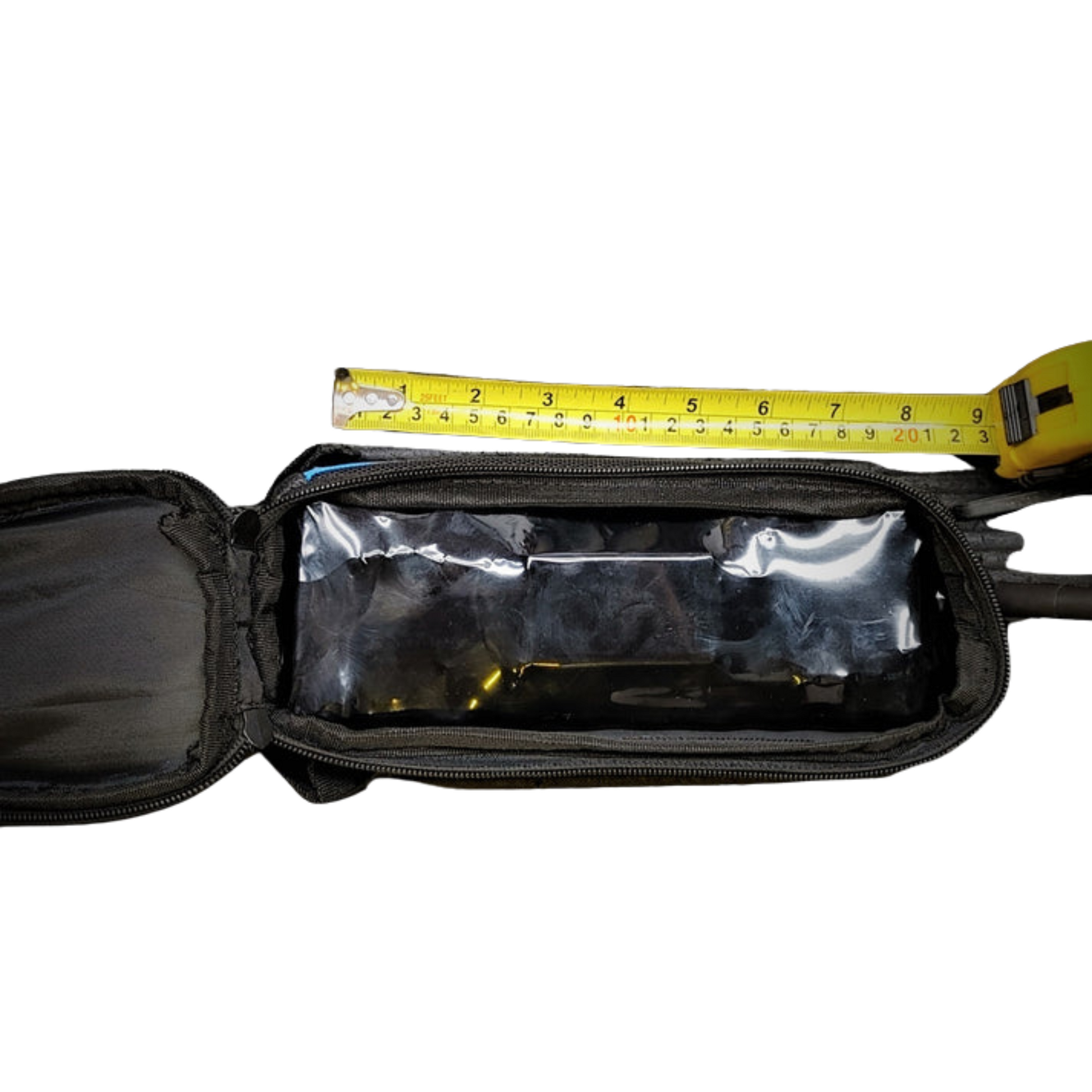

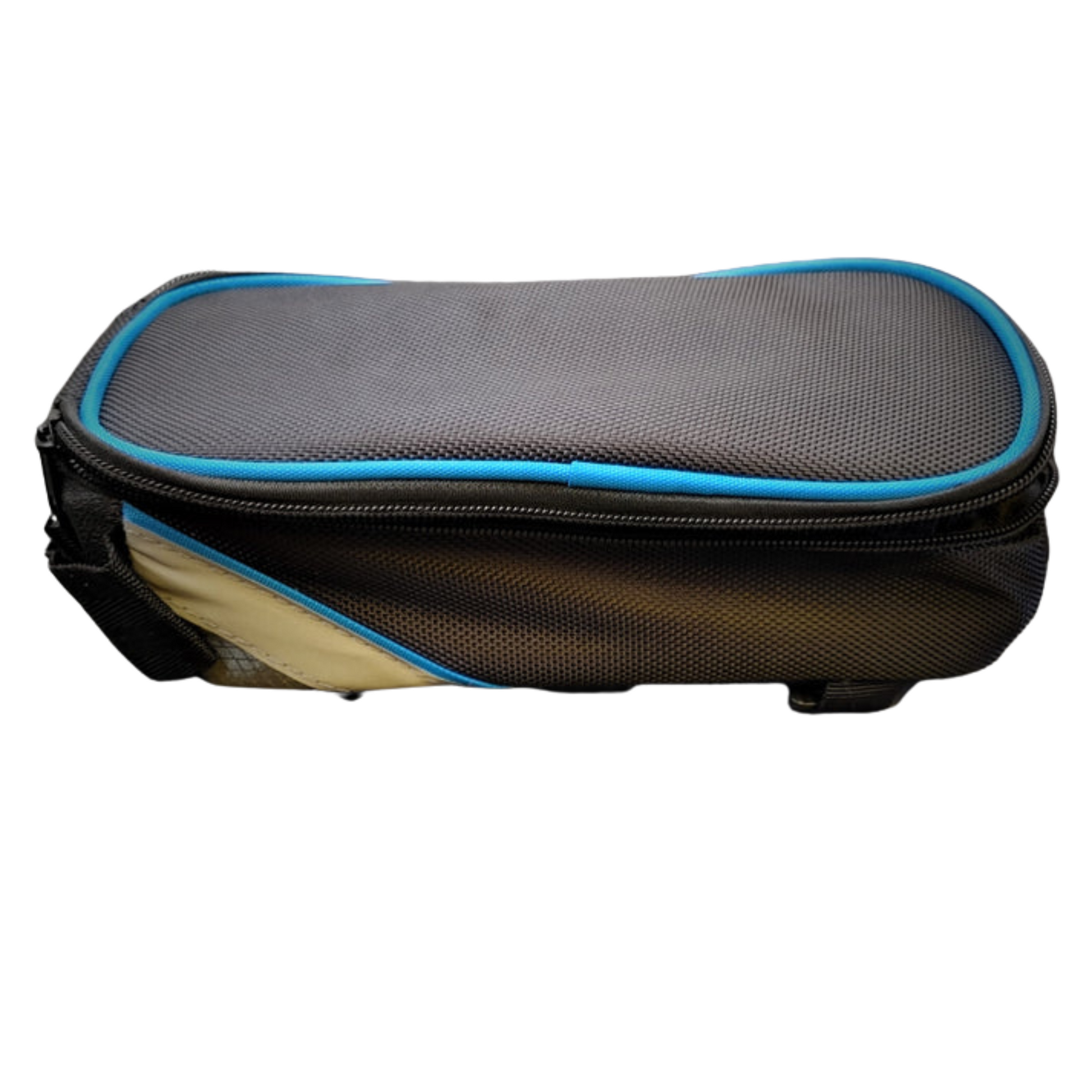

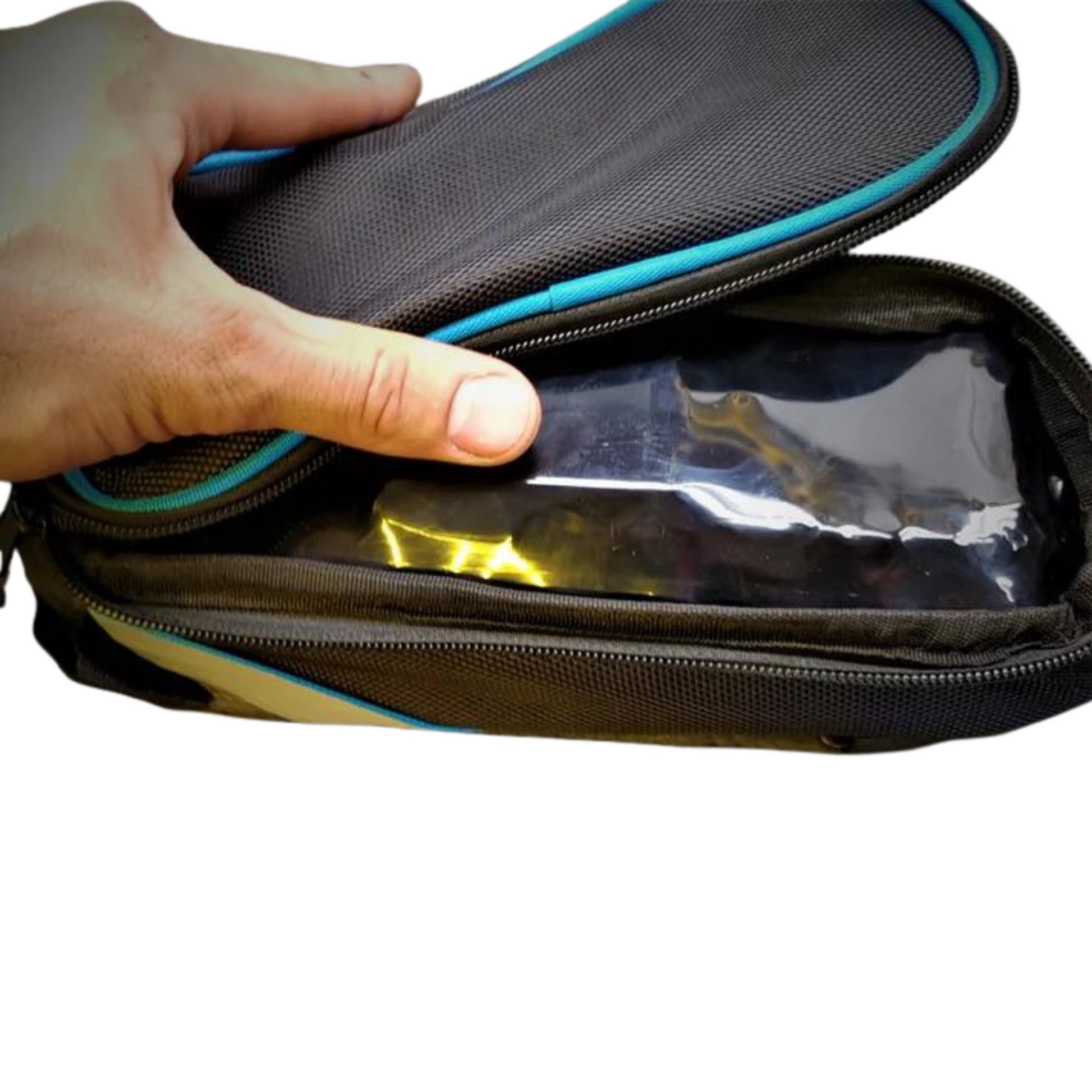

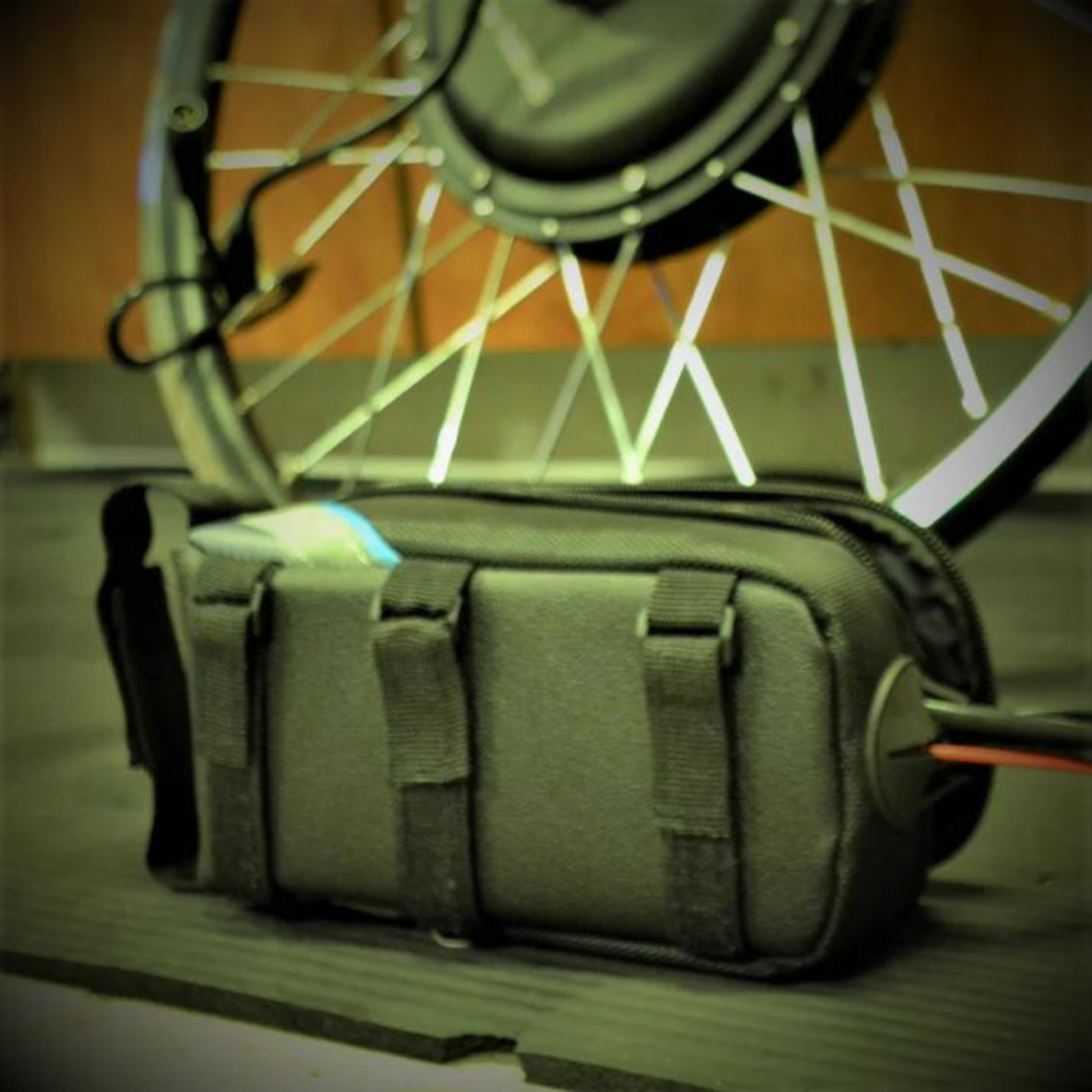

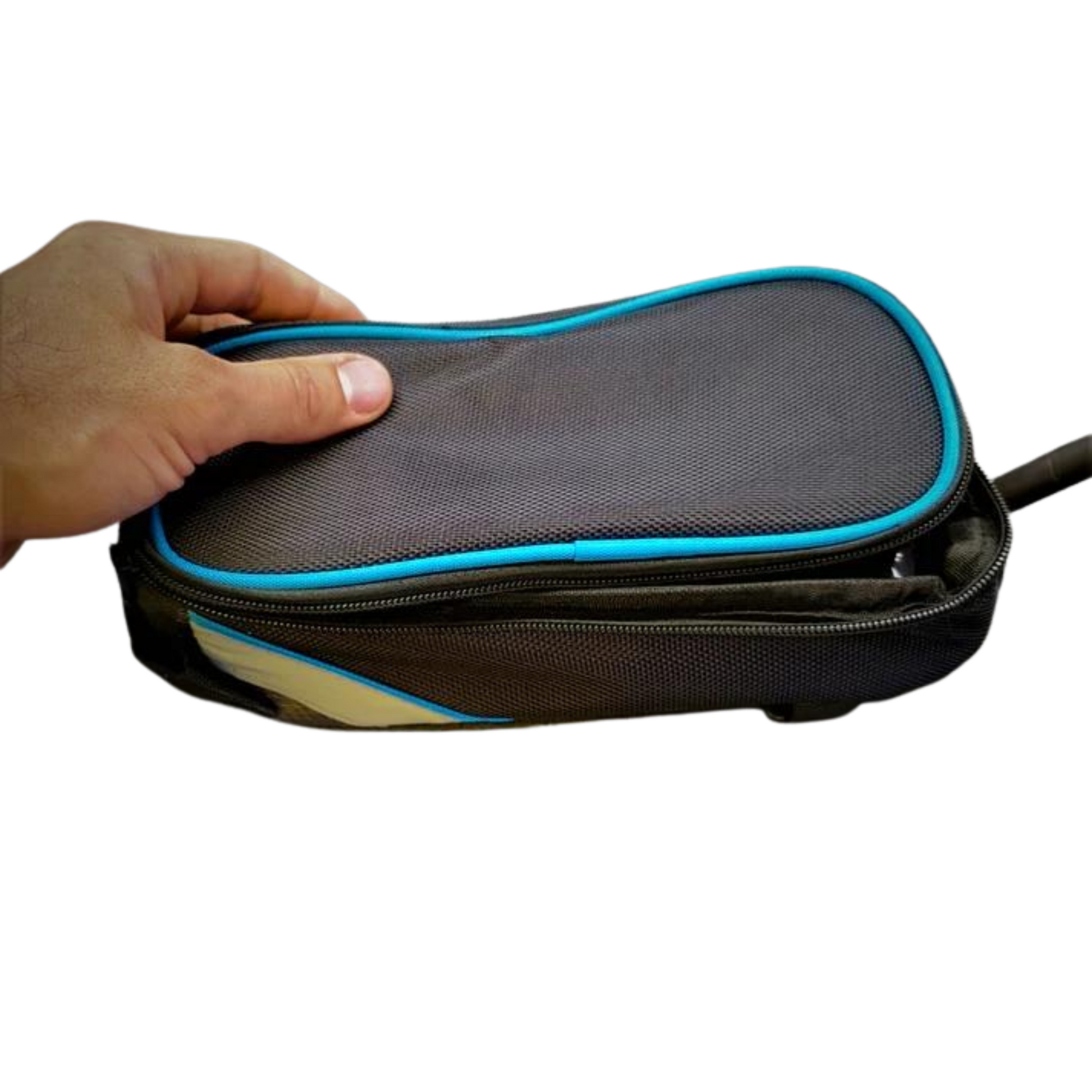

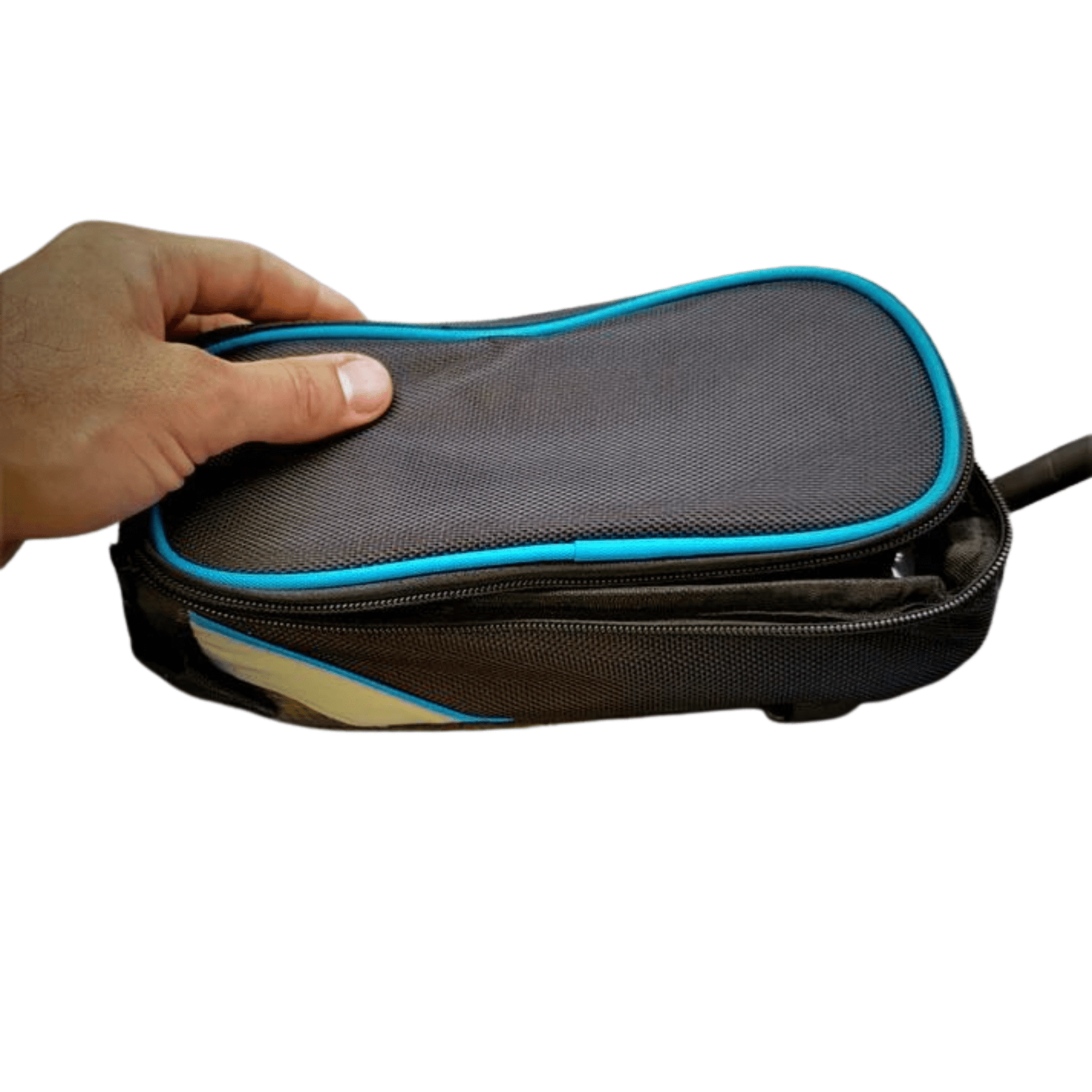

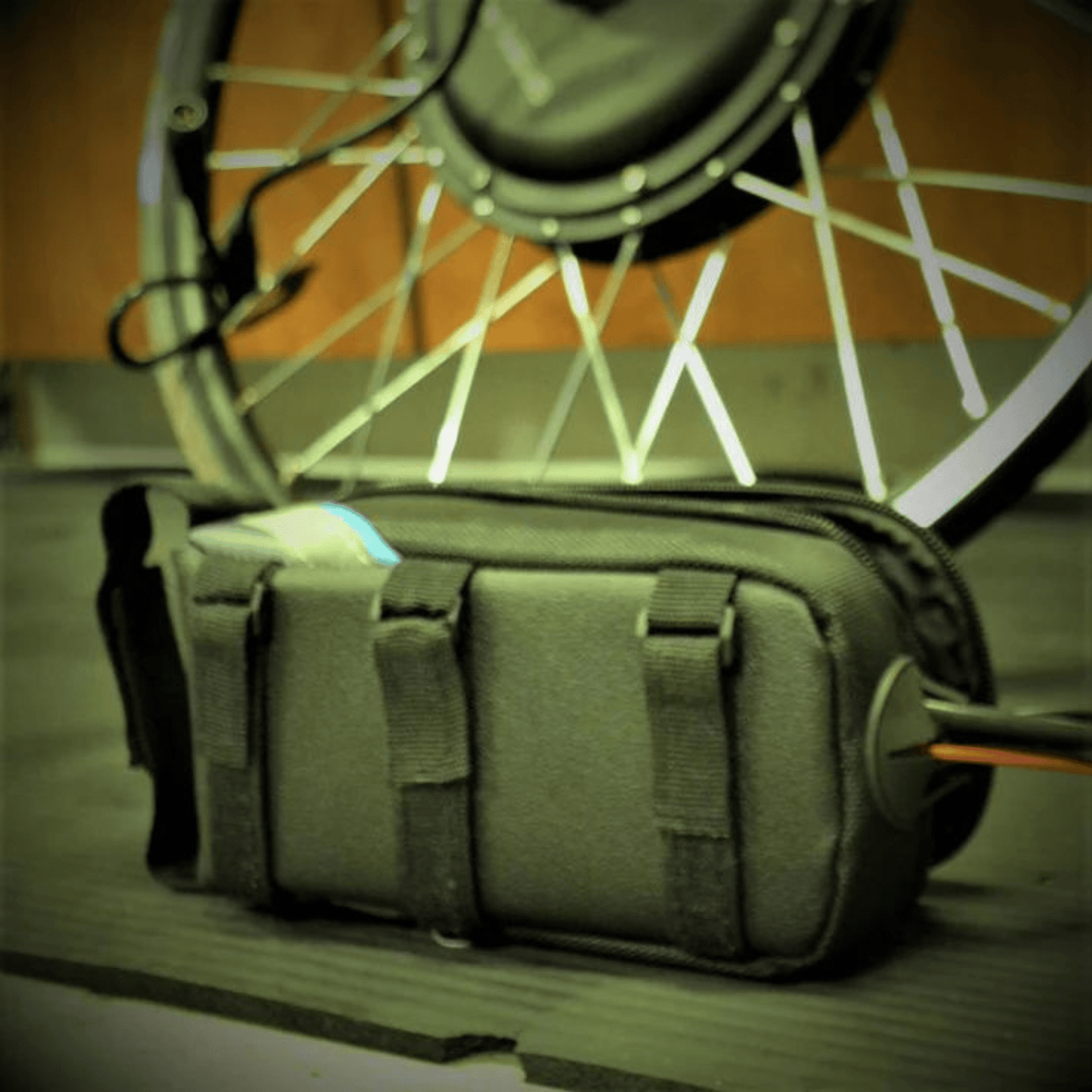

Frame Bag Battery Pack

Our Frame Bag Batteries provide an excellent solution for mounting batteries on frames that pose mounting challenges.

These bags are now standard with all our conversion kits and have been well-received by our customers.

We use the latest 21700 cells, offering a capacity of 5000mAh (5Ah) per cell (Panasonic 21700A / BAK N21700CG / Samsung 50E, depending on availability), resulting in a highly energy-dense battery pack.

Options Available:

36V 10Ah (10S2P)
36V 15Ah (10S3P)
48V 10Ah (13S2P)
52V 10Ah (14S2P)
High Discharge Versions are now offered for high-power applications (1000W-3000W):

36V 8.4Ah
36V 12.6Ah
48V 8.4Ah
52V 8.4Ah
The Molicel P42A Cells are capable of a maximum discharge of 45A per cell, allowing 8.4Ah packs to deliver a peak of 90A and 12.6Ah packs to deliver a peak of 135A. The BMS (Battery Management System) limits peak discharge to 60A. If higher peak discharge is needed, please contact us before purchasing.

All Batteries come with a 3 Amp Charger.

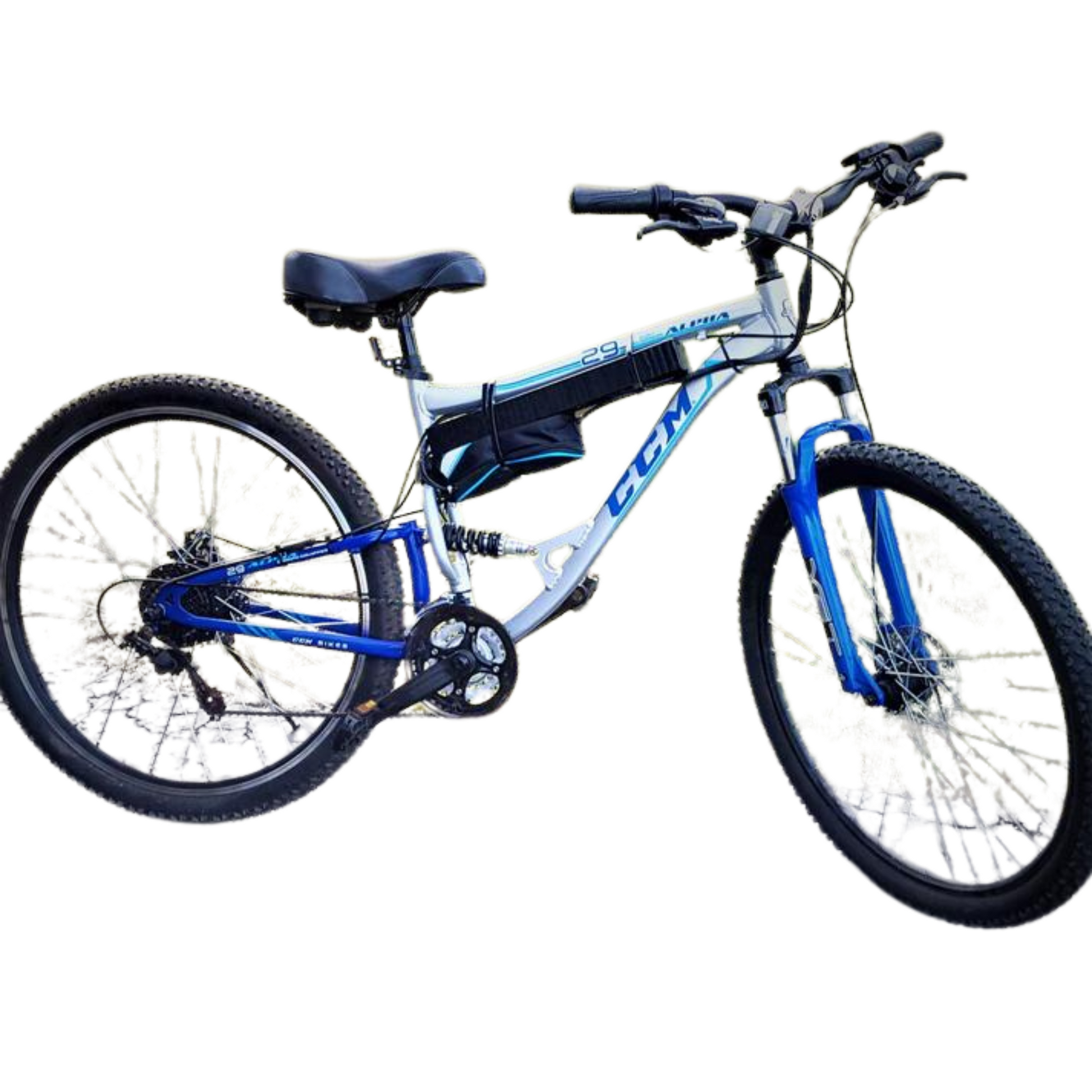

These batteries are ideal for maintaining a low profile on your bike, especially when paired with a mid-drive motor.

Please email us with the discharge cable length in inches required.
